arin server model no AR-APL8000T back panel

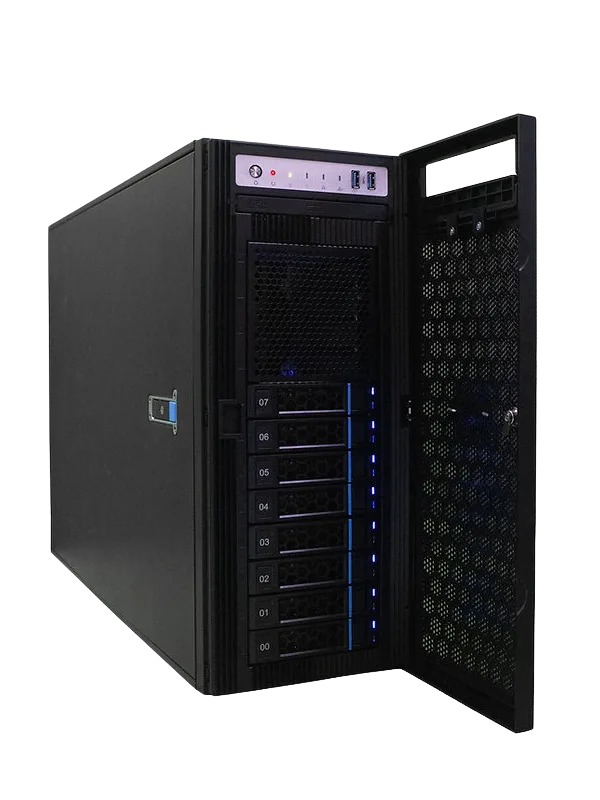

arin server model no AR-APL8000T front panel
arin server model no AR-APL8000T inner component
arin server model no AR-APL8000T back panel
1/4
Tech Specs 8kt
Tech Specs & Customization
Sizing Form factor:
Tower, 4U
Processor :
Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 40 cores per processor
Memory :
16 /18 /32 (Optional) DDR4 DIMM slots, Supports RDIMMs/LRDIMMs, speeds up to 2933MT/s,
2TB* max Supports registered ECC DDR4 DIMMs only
Storage controllers :
Intel® Virtual RAID on CPU (Intel® VROC) and Intel® Rapid Storage Technology Enterprise
(Intel® RSTe)
HW RAID 0/1/10 /5 /6 /6+0 With 12 Gbps Speed.
Chipset :
-
Intel® C242 chipset / Intel® C246 Chipset
I/O & Ports :
• 2 x 1GbE LAN (Optional) Two 10 Gb SFP+ connectors
• 1 dedicated Management port
• 6 x USB (USB 2.0, USB 3.0), including one internal USB port
• 1 VGA video port and 1 serial port
• Up to 7 PCIe Gen4 slots
Power supplies :
Redundant 800W/1300W /1600W/2000W hot-plug RPS Platinum /Titanium efficiency
Bezel :
Front open bezel
Embedded / At-Server :
Redfish / RMMC
Consoles :
• BMC Console
• Remote Management Module
• Redfish
Integrations :
RMM, Microsoft® System Center, VMware® vCenter™, BMC Software
Tools :
• BMC Server Administrator
• IPMI with Redfish
Security :
• TPM 2.0 optional
• Secure Boot
• Intel® AES-NI
• Intel® Trusted Execution Technology
Drive bays :
8BAY/12BAY (Optional) 3.5”/2.5” SAS/SATA (HDD/SSD)
GPU :
Integrated Graphics
Supported operating Systems :
Microsoft Windows Server® LTSC, Ubuntu® LTS , Red Hat® Enterprise Linux , VMware® ESXi®,
SUSE® Linux Enterprise Server
OEM-ready version available :
From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.
Support and Services :
3 Year Onsite Warranty.
Recommended support and services :
Choose arin™ for critical systems hardware and software support for your Power Server solution.
Consulting and deployment offerings are also available. Contact your arin™ representative today
for more information.
Features & Design 8kt
Features & Design
Your foundational, entry-level server
Arin Power Server AR-PL8000T series delivers outstanding, error-free dominant performance
specially designed for your Small Medium scale Businesses (SMB). Excellent efficiency with
unmatched Hardware Value and Affordable after-sales Service.
AR-PL8000T series servers come with embedded IPMI 2.0 & and Redfish technology that helps to deliver intelligent automation with agent-free management right out of the box. An efficient quiet operating server that can handle a wide range of office workloads including, workgroup collaboration, productivity applications, mails, messages, data files, print, and web servings.
